Time to be

UNIVERSAL

Buy one module for any type of a laser

UNIVERSAL

the only universal laser

One module for any Noritsu laser type

Explore a unique module designed for any photo laboratory

We are pleased to present our universal module specially designed for service centers. Now there is no longer any need to keep different types of laser modules in stock. Just two modules are enough: green and blue.

The module fully compatible with QSS software and perfectly works on any Noritsu laser labs such as QSS32 / QSS33 / QSS34 / QSS35 / QSS37 series.

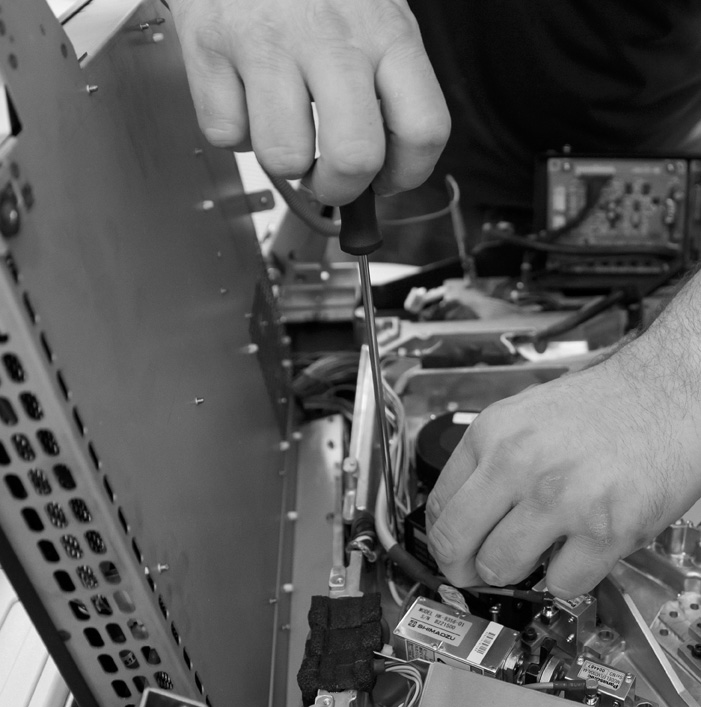

minilablaser.com technician's hands at work

Years of guarantee

re divider

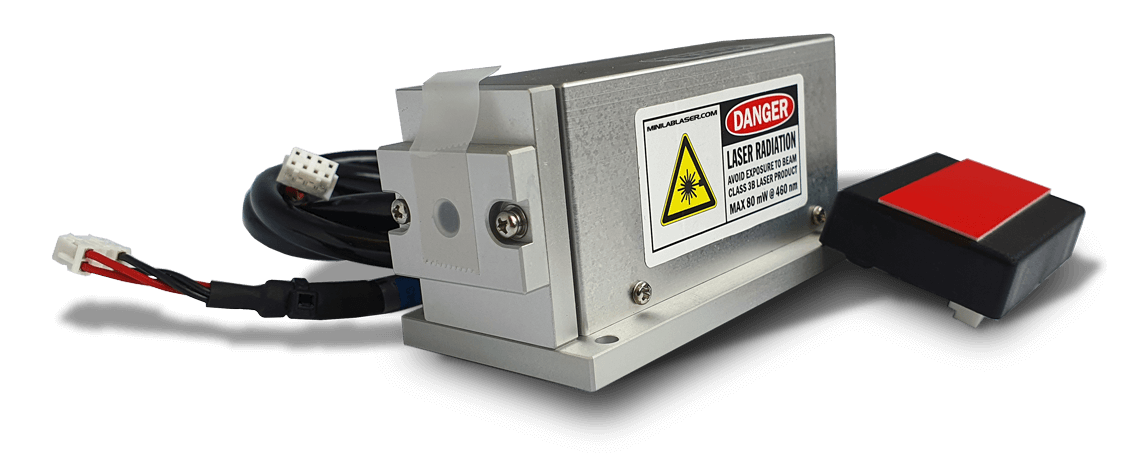

new universal laser module made by minilablaser

REASON

REASON

why is it worth buying?

Having only two modules for emergencies allows service engineers to be more flexible and help the customer immediately without worrying about the compatibility of the available laser modules with the laser in the customer’s laboratory.

Fast response to customer needs will help you capture the market and stay ahead of the competition.
Be on the cutting edge of technology! Use the best modules!

re divider

Designed for

noritsu logo at minilablaser.com

Universal Laser Module’s Key Features

Excellent quality

A module has an excellent beam shape and stability of emission to ensure the best quality of pictures.

highest reliabilty

Thanks to a well-thought-out design, our modules have the highest reliability and simplicity.

Simple replacement

Very easy installation and the adjustment process is a visit card of our lasers. Almost plug & play device!

HISTORY RECORDS

Module daily writes logs of all important information to the internal memory for future analysis.

re divider

Universal Laser

"MustHave" for service centers

SPECIFICATION

minilablaser.com

Specification: Universal Laser Module

DESCRIPTION

These laser modules consist of:
– a laser diode in the mount
– optical section with lenses and apertures
– controller PCB (3 pcs.)
The lenses made of high-quality real glass that helps to produce a laser beam with perfect shape. Its position can be adjusted to bring the beam to a focused spot.

General characteristics (Blue module)

Nominal wavelength Blue module: 460 nm
Maximum power output: 300 microwatt (ajustable +/-50%)
I op: 80 mA
Typical operating current at minimum voltage: 30 mA
Typical operating current at maximum voltage: 30 mA
Typical power output stability (@ 20°C 10H): >1%
Typical power output stability (@ 15-45°C): >2%
Beam size: 0.5 x 0.5 mm
Beam waist location: 40 mm
Pointing stability: <0.05 mRad
Angular deviation of beam to case (front cell): <5 mRad
Beam position tolerance: +/_ 0.2mm

General characteristics (Green module)

Nominal wavelength Green module: 530 nm
Maximum power output: 700 microwatt (ajustable +/-50%)
I op: 110 mA
Typical operating current at minimum voltage: 30 mA
Typical operating current at maximum voltage: 30 mA
Typical power output stability (@ 20°C 10H): >1%
Typical power output stability (@ 15-45°C): >2%
Beam size: 0.5 x 0.5 mm
Beam waist location: 40 mm
Pointing stability: <0.05 mRad
Angular deviation of beam to case (front cell): <5 mRad
Beam position tolerance: +/_ 0.2mm

MANUFACTURER

MINILABLASER.COM [RUSSIA]

COMPATIBILITY

QSS32 / QSS33
LASER TYPE A1
ORIGINAL MODULE:          UNIVERSAL MODULE
HK-9755-01 BLUE             BULM SLD “BAIKAL”
HK-9755-02 GREEN          GULM SLD “GAMMARUS”

LASER TYPE B1
ORIGINAL MODULE:          UNIVERSAL MODULE
JMB-D BLUE                        BULM SLD “BAIKAL”
JMB-B BLUE                        BULM SLD “BAIKAL”
JMG-B-R GREEN                GULM SLD “GAMMARUS”
JMG-B GREEN                     GULM SLD “GAMMARUS”

LASER TYPE fF
ORIGINAL MODULE:          |  UNIVERSAL MODULE

QSS34 / QSS35
HK-9356-01 BLUE             |  BULM SLD “BAIKAL”
HK-9356-02 GREEN          |  GULM SLD “GAMMARUS”

QSS37 / QSS38
HK-9356-02 GREEN          |  GULM SLD “GAMMARUS”

LPS24PRO
HK-9356-01 BLUE              |  BULM SLD “BAIKAL”

CONTROLLER (LASER DRIVER)

Integrated controller.
No connection to the original laser drivers required.
The laser module emulates the functionality of the original laser drivers and connects to the power supply unit directly via a special adapter.
